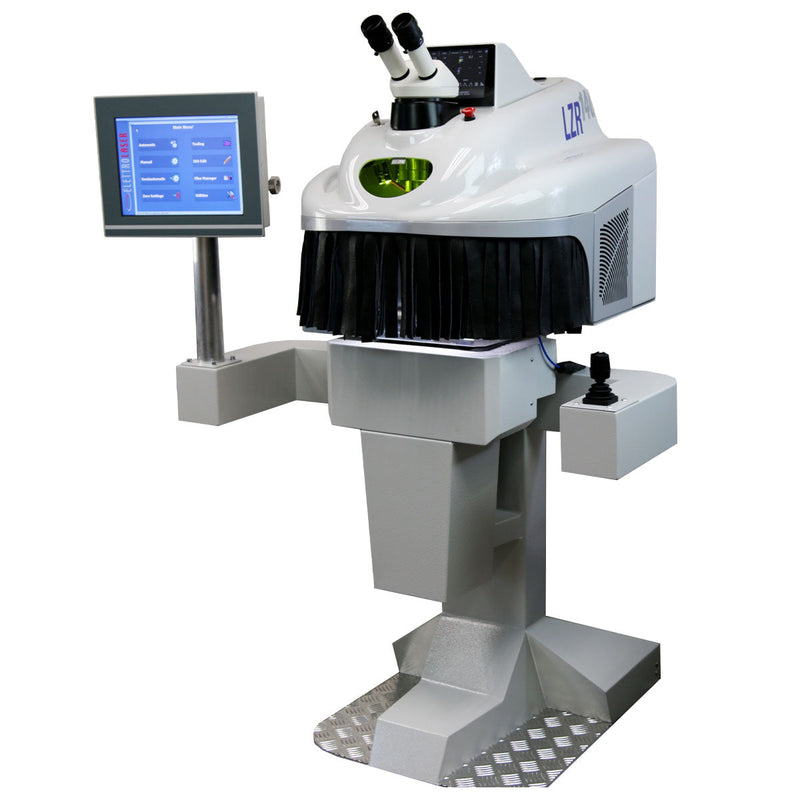

Automated Welding Laser System (AWL)

Original price $42,000.00 - Original price $44,000.00
Original price
$42,000.00
$42,000.00 - $44,000.00
Current price $42,000.00
Request a quote

We Deliver Worldwide

Unless indicated otherwise in the Acknowledgment, Delivery shall be made EXW (Incoterms 2010), Shipping Point, including without limitation, freight, and insurance costs. If no delivery terms are specified on the Acknowledgement, the method of shipping will be at the sole discretion of Seller. Unless directed in writing otherwise by Buyer, full invoice value will be declared for all shipments.

Automated Welding Laser System (AWL)

Features

  • Open Welding Chamber
  • XYZ Motorized Tab
  • Multifunction Joystick
  • LEICA 10x Stereomicroscope
  • 7” Touchscreen Color Display
  • In Line Camera
  • R Axis Rotation System (optional)
  • Double Cooling System
  • 2 Year Full Warranty
  • Two models to choose from: 160 joules or 240 Joules


Technical Specifications

Feature: LZR AWL 160 LZR AWL 240

Laser source and wavelength

Nd: YAG 1064 nm

Nd: YAG 1064 nm

Average power

100 W

100 W

Peak power [kW]

8 kW

12 kW

Energy [Joule]

0.1 - 160 J

0.1 - 240 J

Impulse time

0.1 - 20 ms

0.1 - 20 ms

Pulse frequency

0.5 - 30 Hz

0.5 - 30 Hz

Spot diameter

0.2 - 2.0 mm

0.2 - 2.0 mm

Servo Driven Height Adjustment

Motorized, 30 positions

Motorized, 30 positions

Programs

Pulse Shaping 6 preset

Pulse Shaping 6 preset

Memories cell stored

100

100

XYZ Table

150 x 100 x 210 mm

150 x 100 x 210 mm

External control

7” Display & Joystick with Functions

7” Display & Joystick with Functions

Input power

110 V AC, 50/60 Hz, single

110 V AC, 50/60 Hz, single

Ampere

10A

10A

Max Dimensions

[LxWxH] 67x78x135 cm

[LxWxH] 67x78x135 cm

Integrated Camera

Yes

Yes

Argon / Air Nozzle

Yes / Yes

Yes / Yes

Weight

210 lbs

210 lbs

Wi-Fi

Yes

Yes



DO YOU NEED TRAINING?

Sunstone's training team is ready to help you master the Automated Welding Laser System (AWL) for any particular application, like permanent jewelry, Visit our Training Page to learn more.

Return Goods Policy

Seller’s products may be returned to Seller for credit within thirty (30) days of the shipment subject to the following conditions.

Sunstone offers a 30-day return policy on all products. Before sending a product back please contact Sunstone to receive an RMA number. The RMA number should appear clearly on the outside of the package. Customers are refunded via check. Please note that a 10% restocking fee will apply to all returns. A 30% restocking fee will apply to all 3rd party products (laser welders, laser engravers, PW - AC Welders, and AVIO products). Additionally, all 3rd party products must be insured when sent back to Sunstone at the buyer’s expense. In some cases, a merchant fee may apply. Equipment damaged by improper use or insufficient shipping precautions will be charged additional fees.

*DADO Laser Welder – No cash refunds available for the dado laser welder. However, The Dado Laser Welder may be returned within 30 days for credit towards another Orion or Sunstone product.

*Argon tanks have a $35 restocking fee, the tank must be emptied and left open with the protective cap put in place. All hazardous material and compressed gas stickers need to be removed from the packaging as the empty cylinder is not hazardous and doesn't contain compressed gas.

*Refunds will not be issued for services that have already been rendered such as shipping, calibration, or trainings.

Shipping outside the USA?

Sunstone ships welders all over the world every day. Kindly note that Duties and Taxes are not calculated nor collected by Sunstone. In most cases, the assigned carrier will notify you of any additional required fees. Thank you!
